The CCS-G 400 to 1000 series is our most popular vibrating seperator machine. It is highly suitable for quick separation of any powder, grain and liquid in foodstuff, chemical, pharmaceutical, grinding, ceramic and metals processing.

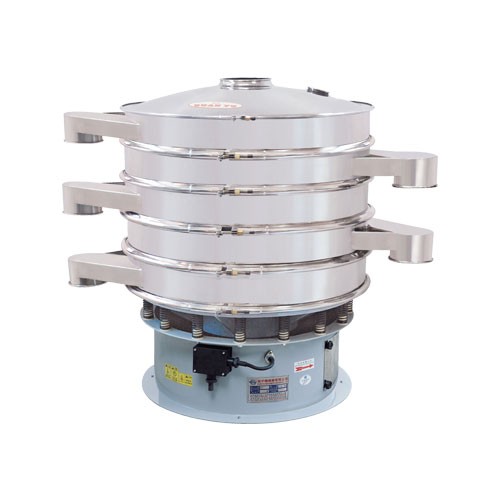

Sealed Type

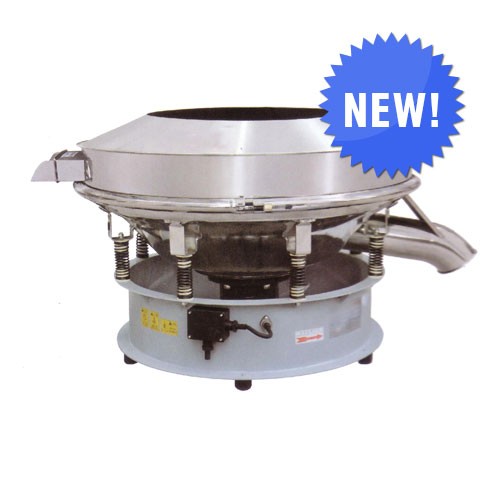

Brand New F Model

Brand New “F” Model

  • Higher capacity output and energy efficient than conventional models
  • Specially design for slurry applications
  • Lower Cost
Model HP Diameter of Sieve Surface (mm) No. of Decks Net Weight (kg)
CCS-G-440 ¾HP 358 Up to 3 Decks 90-106
CCS-G-600 1HP 525 Up to 3 Decks 105-165
CCS-G-800 1HP 730 Up to 3 Decks 200-250
CCS-G-1000 2HP 900 Up to 3 Decks 235-295
CCS-G-1200 2.5HP 1100 Up to 3 Decks 340-390
CCS-G-1500 3HP 1400 Up to 3 Decks >515

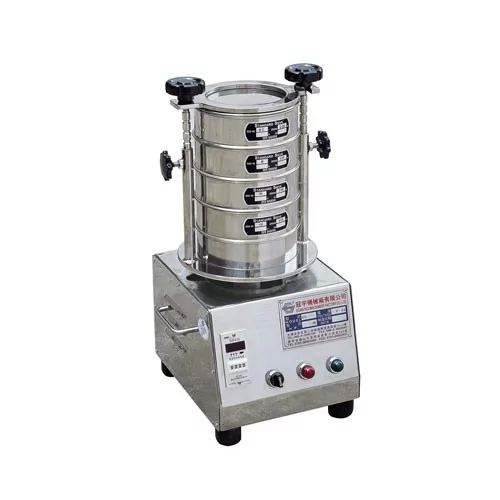

CCS-G-200

Motor: 0.3H
Voltage (Depends on request):

  • Single phase: 110V/220V
  • Three phase: 220V/380V/415V

Frequency: 50Hz/60Hz
Speed (R.P.M): 1440/1720

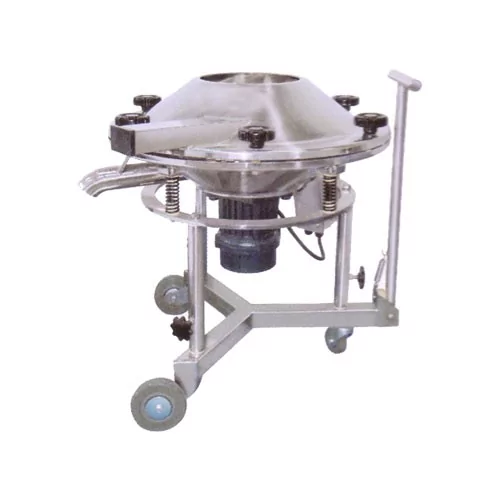

CCS-G-600G

Motor: ¾HP
Voltage (Depends on request): 380V/415V
Frequency: 50Hz/60Hz
Speed (R.P.M): 2990
Effective diameter of screen (mm): 730
Capacity (Kg/hr): 600∼800
Net Wt. (Kg): 60

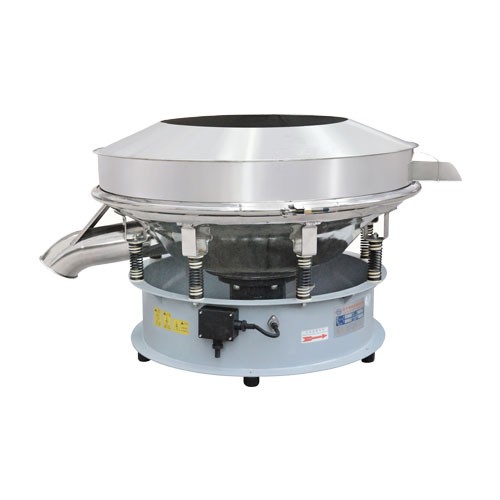

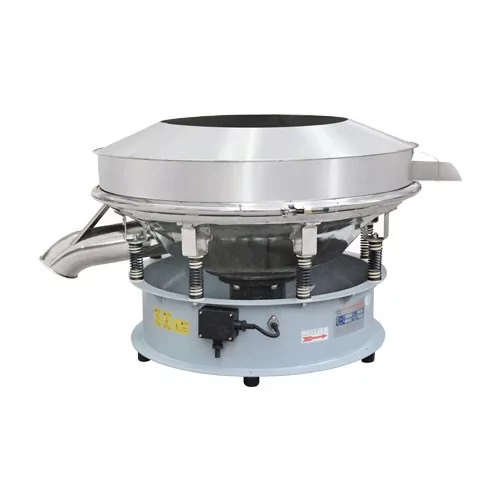

CCS-G-1200F

Motor: 2HP
Voltage (Depends on request): 380V/415V
Frequency: 50Hz/60Hz
Speed (R.P.M): 1440
Effective diameter of screen (mm): 1100
Capacity (Kg/hr): 15
Net Wt. (Kg): 175

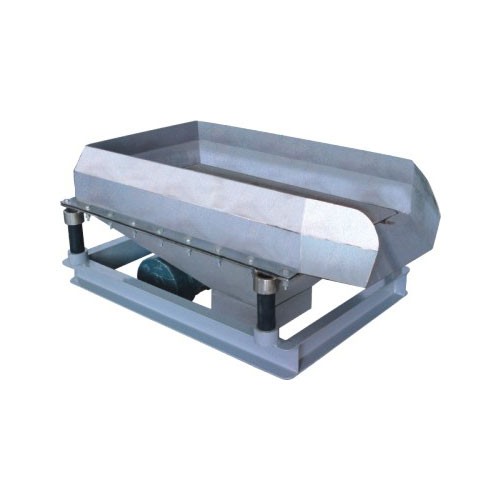

CCS-G-800E

Model Power Frequency (Hz) Speed (R.P.M) Centrifugal force (Kg) Effective screen area (mm) Net wt. (Kg) Capacity (tons/hr)
L (mm) W (mm)
400E 0.2 50Hz/60Hz 1470/1720 250 340 590 0.1∼0.3
600E 0.5 50Hz/60Hz 1470/1720 600 606 910 145 0.25∼0.55
800E 1 50Hz/60Hz 1470/1720 800 800 1360 0.5∼1
1200E 2.5 50Hz/60Hz 1470/1720 1600 956 1860 834 1.2∼2.3
